Daminɛ kuma

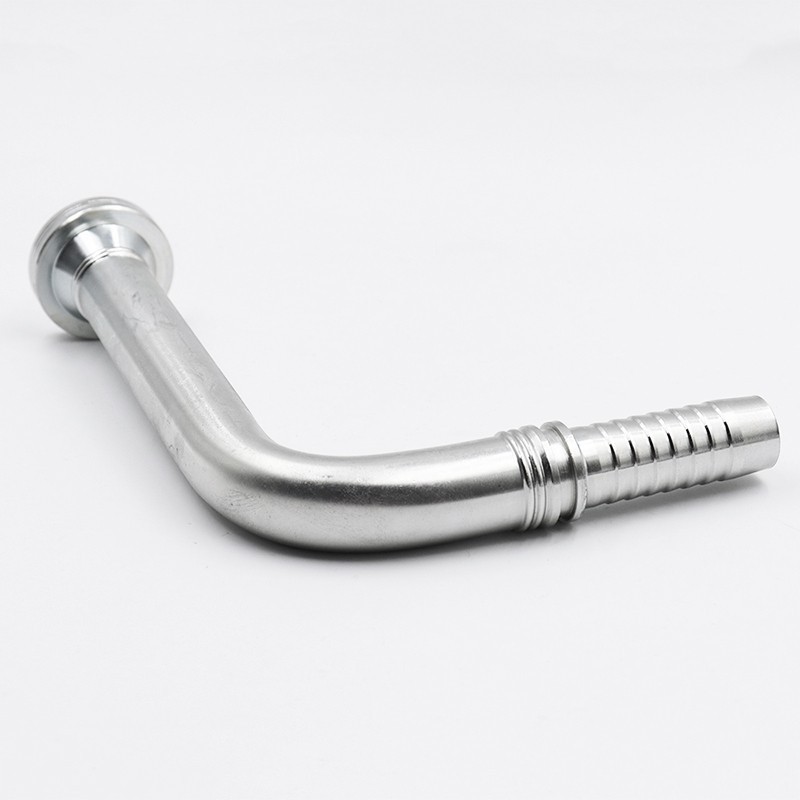

SAE hydraulique pipe flanges ka bon-Baarakɛɲɔgɔnya yɔrɔw la minnu dilannen don walasa ka ji jiginni lakana, min bɛ bɔ- A dilannen don ka kɛɲɛ ni SAE J518 ani ISO 6162 sariyaw ye, nin flanges ninnu bɛ baara kɛcogo dannayalen sabati sanfɛ-pressure applications kɔnɔ izini suguya caman kɔnɔ.
Ɲɛfɔliw .
|
Yɔrɔ no. |
flange size . |
HOSE BORE . |
Dimensions . |
|||||
|
DN . |
TIIRININ |
A |
C |
D |
H |
L |
||
|
87641-08-08 |
1/2" |
12 |
08 |
58.9 |
31.7 |
24 |
24 |
7.75 |
|
87641-08-12 |
1/2" |
20 |
12 |
74.9 |
31.7 |
24 |
27.5 |
7.75 |
|
87641-12-10 |
3/4" |
16 |
10 |
72.5 |
41.3 |
32 |
28.2 |
8.76 |
|
87641-12-12 |
3/4" |
20 |
12 |
79.2 |
41.3 |
32 |
31.8 |
8.76 |
|
87641-16-16 |
1" |
25 |
16 |
90.2 |
47.6 |
38 |
34.7 |
9.53 |
|
87641-20-20 |
1.1/4" |
32 |
20 |
103.8 |
54 |
44 |
41.5 |
10.29 |
|
87641-24-20 |
1.1/2" |
32 |
20 |
105.8 |
63.5 |
51 |
45.1 |
12.57 |
|
87641-24-24 |
1.1/2" |
40 |
24 |
116.2 |
63.5 |
51 |
45.5 |
12.57 |
|
87641-32-24 |
2" |
40 |
24 |
125.4 |
79.4 |
67 |
54.7 |
12.57 |
|
87641-32-32 |
2" |
50 |
32 |
135.7 |
79.4 |
67 |
52.7 |
12.57 |
Paramɛtiriw/Tekniki kunnafoniw .
|
Yɛrɛyɛrɛ |
Zhejiang, Sinuwa jamana na . |
Laseli don . |
Negotiable . |
|
Seereyaw . |
GB/T19001-2016 IDT ISO9001:2015 |
Packing . |
Export Standard . |
|
Minɛ |
Karɔbɔni nɛgɛ . |
garanti . |
1 san . |
|
Sarali waati . |
TT . |
MOQ . |
2000 |
|
Cogo |
Kura |
Ɲɛ |
Zɛnki finman, zinki kulɛri . |
Kompani ko la .
Nafaw .
Degun baarakɛcogo min tɛ se ka suma ni ɲɔgɔn ye .
injiniyɛri ka muɲu fo ka se 10.000 psi burst pressure .
30% tansiyɔn hakɛ min ka bon ni SAE ka sariyaw ye .
A bɛ sigilan dafalen mara degunba cycling cogoyaw la .
Precision Manufacturing Excellence .
CNC machine ka ±0.005" muɲuli ka ɲɛsin fitinin dafalen ma .
Forged construction (a tɛ kɛ ni cast ye) ka ɲɛsin fanga sanfɛla ma .
Micro-Sigiyɔrɔ labanw (RA < 0,4μm) .
Fɛn minnu ka ɲi kosɛbɛ .
Avion-Boli min bɛ kɛ ni karɔbɔni ye ni sɛgɛn ye min bɛ bonya ka ɲɛ .
316L inox option ni 5x corrosion resistance .
Materiel complet de traceabilité avec certificats de mill .
Leak-Sanuli min bɛ se ka kɛ .
Proprietary quad-SealTM Technology (Sigilan fɔlɔ, filanan, ani dual backup seals)
Pre-Installed High-Baarakɛcogo fkm o-ringw (-65 degɛrɛ F ka se +400 degere f)
100% degun sɛgɛsɛgɛra ka se 1,5x baarakɛ tansiyɔn ma .
Industry-A bɛ mɛn a ka muɲuli la .
50% baarakɛ waati jan ka tɛmɛ izini sariya kan .
Yɔrɔ kɛrɛnkɛrɛnnenw minnu ka gɛlɛn ka ɲɛsin abrasive fluid applications ma .
Impact-Sigida min bɛ se ka kɛ ka ɲɛsin sanfɛ-Vibration sigidaw ma .
Duniya bɛɛ ka sariya labatoli & seereyaw .
A ye seere sɔrɔ SAE J518, ISO 6162, ani ASME B16.5.
PED 2014/68/EU ka sariyaw .
ABS ani DNV-GL Marine ka sɔnniw bɛ sɔrɔ .
Nafa minnu bɛ sɔrɔ a sigili la .
Laser-Etched Identification taamasiyɛnw walasa ka ɲɛsin nɔgɔya ma .
pre-Assemblée ni guide de alignements .
40% ka teliya ka tɛmɛ flanges conventionnels kan .
ladamuni sekow .
A bɛ sɔrɔ hakɛw la ka bɔ 1/4" la ka se 6" ma.
Fɛn kɛrɛnkɛrɛnnen minnu bɛ yen i n’a fɔ Monel, Hastelloy, ani Titanium .
port configurations customs ani pressure ratings .
Quality assurance rigorous .
100% dimension verification ni CMM .
Ultrasonic testing for material integrity .
Batch traceability ni seriyali nimɔrɔ kɛrɛnkɛrɛnnenw .
Fɛɛrɛbɔ min tɛ se ka suma ni fɛɛrɛ ye .
Aplikasiɔn jɛkulu kɛrɛnkɛrɛnnen .
Analysis hydraulique hydraulique gratuit .
On-Site installation kalan bɛ sɔrɔ .
FAQ .
J: I ka SAE flanges bɛ sariya jumɛnw labato?
A: An ka Flansɛw bɛ ɲɔgɔn sɔrɔ:
SAE J518 (Kode 61 & 62) .
ISO 6162 (sɛbɛn ɲɛ 1 & 2) .
DIN 20066 .
ASME B16.5 (Ɲɛjirali) .
J: degun hakɛ jumɛnw bɛ sɔrɔ?
A: Degun minnu bɛ kɛ ka kɛɲɛ ni sariya ye:
3000 PSI (207 Bar) Serie standard .
6000 psi (414 bar) sanfɛ-Tressure series .
A ka baara kɛcogo bɛ se ka kɛ 15.000 psi (1034 bar) ye .
J: I bɛ fɛn jumɛnw di?
A: Fɛn minnu bɛ kɛ ka kɛɲɛ ni sariya ye:
AISI 4130 Nɛgɛso .
304/316 inox .
Alloy kɛrɛnkɛrɛnnenw:
duplex 2205 .
Inconel 625 .
Titanium Grade 5 .
J: Ne bɛ se ka flange hakɛ bɛnnen sugandi cogo di?
A: Key Selection Paramɛtɛrɛw:
Pipe tɔgɔla hakɛ (NPS) .
Sisεmεti baarakɛ tansiyɔn .
Flow wajibiyalenw (GPM) .
Funteni hakɛ .
An ka ɛntɛrinɛti injiniyɛriw bɛ ladilikan di fu .
J: Sealing sugandicogo jumɛnw bɛ sɔrɔ?
A: Sealing Configurations:
o-Fɛɛrɛsigilan (ORFS) - sariya .
RTJ (joli suguya dɔ) .
ɲɛda fla ni joginda gasi ye .
Metal-ka-Nɔgɔ sigilan ka ɲɛsin sanfɛla ma-Temp apps .
J: Yala i ka flanw bɛ se ka ɲɔgɔn falen ni fɛn wɛrɛw ye wa?
A: Ɔ̀wɔ, an ka flangow:
SAE/ISO dimension sariya labatoli dafalen mara .
bɛ 100% ɲɔgɔn falen ni dilancogo jɔnjɔnw ye .
Aw ye muɲuli-Kɔrɔlen jɛɲɔgɔnya yɔrɔw sen don a la .
J: I ka waati ye mun ye ka ɲɛsin ladamu komandiw ma?
A: Sɛnɛ waatibolodacogo:
Stock Items: 24-hour shipment
Standard Custom: 5-7 baarakɛdonw
Alloy kɛrɛnkɛrɛnnenw: dɔgɔkun 2-3 .
Kɔrɔtɔko sɛnɛfɛnw bɛ sɔrɔ .
J: I bɛ dɛmɛ di installation ma wa?
A: Dɛmɛnbaga bɛɛ lajɛlen:
Calculateurs numériques numériques .
3D installation animations .
Foro sigicogo gafew .
On-Site Technicien Dispatch (A bɛ se ka kɛ) .
J: I bɛ seereyaw jumɛnw mara?
A: Sisan seereyaw:
ISO 9001:2015 (QMS) .
API Q1 (Oil & Gas) .
PED 2014/68/EU ka kulu IV .
DNV-GL Marine .
J: Ladonni jumɛn de bɛ kɛ?
A: Bana kunbɛncogo:
San o san torque sɛgɛsɛgɛli .
Biennial Seal Inspection .
San 5 ultrasonic testing .
A falenni 50 000 cycles kɔfɛ .
