Daminɛ kuma

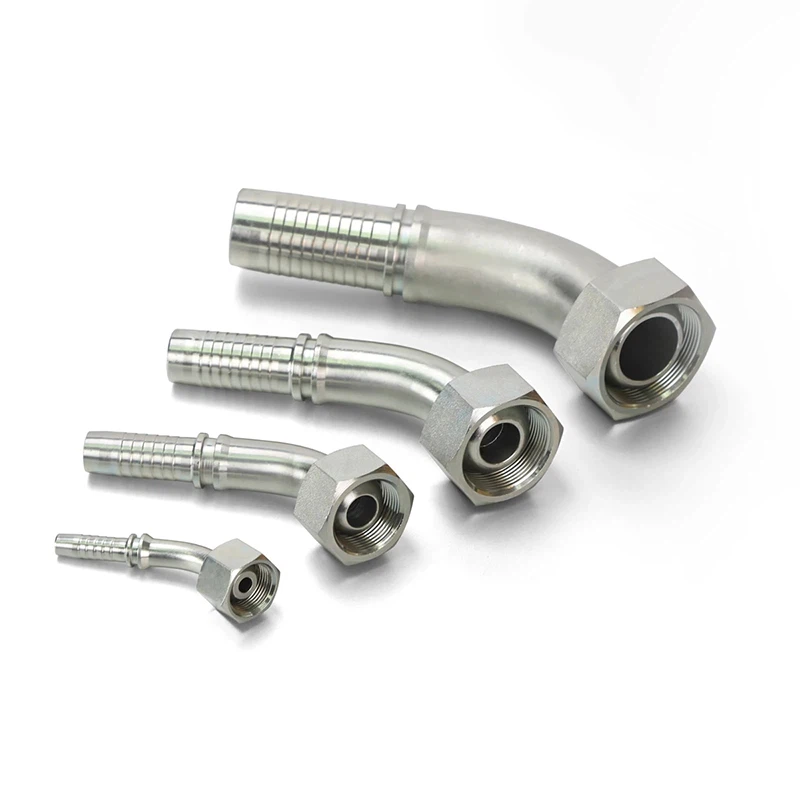

An ka cɛ hydraulique hose fitting bɛ kɛ ni engineered ye walasa ka connections secure, leak{0}}proof connections in demanding hydraulique applications di. A dilannen don ni fɛnw ye minnu bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye min bɛ se ka kɛ fɛn ye.

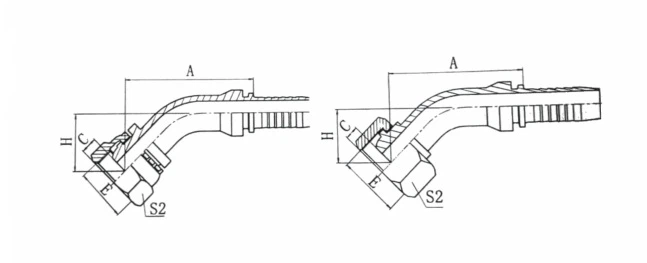

Ɲɛfɔliw .
|
Yɔrɔ no. |
Thread E . |
HOSE BORE . |
Dimensions . |
||||
|
DN . |
TIIRININ |
A |
C |
H |
S2 |
||
|
20141-10-03 |
M10X1 |
5 |
03 |
41.1 |
2.5 |
20.7 |
14 |
|
20141-10-04 |
M10X1 |
6 |
04 |
43.2 |
2.5 |
21.5 |
14 |
|
20141-12-03 |
M12X1.5 |
5 |
03 |
40.9 |
4 |
21.2 |
17 |
|
20141-12-04 |
M12X1.5 |
6 |
04 |
43 |
4 |
22 |
17 |
|
20141-14-04 |
M14X1.5 |
6 |
04 |
43.4 |
4.5 |
21.3 |
19 |
|
20141-14-05 |
M14X1.5 |
8 |
05 |
45.5 |
4.5 |
22.2 |
19 |
|
20141-16-04 |
M16X1.5 |
6 |
04 |
43.7 |
4.5 |
21.4 |
22 |
|
20141-16-05 |
M16X1.5 |
8 |
05 |
45.8 |
4.5 |
22.5 |
22 |
|
20141-16-06 |
M16X1.5 |
10 |
06 |
47.4 |
4.5 |
24.1 |
22 |
|
20141-18-05T |
M18X1.5 |
8 |
05 |
46.8 |
4 |
22.6 |
24 |
|
20141-18-06 |
M18X1.5 |
10 |
06 |
48.5 |
4 |
24.2 |
24 |
|
20141-18-08 |
M18X1.5 |
12 |
08 |
52.2 |
4 |
25.7 |
24 |
|
20141-20-06T |
M20X1.5 |
10 |
06 |
48.2 |
5.5 |
23.9 |
27 |
|
20141-20-08 |
M20X1.5 |
12 |
08 |
62.1 |
5.5 |
27.2 |
27 |
|
20141-22-06T |
M22X1.5 |
10 |
06 |
58.4 |
5 |
25.7 |
27 |
|
20141-22-08 |
M22X1.5 |
12 |
08 |
62.1 |
5 |
27.2 |
27 |
|
20141-24-08T |
M24X1.5 |
12 |
08 |
61.1 |
5.5 |
26.1 |
30 |
|
20141-24-10 |
M24X1.5 |
16 |
10 |
75.4 |
5 |
29.6 |
30 |
|
20141-27-10DT . |
M27X1.5 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-27-10T |
M27X2 |
16 |
10 |
74.4 |
5.5 |
29.6 |
32 |
|
20141-30-12D |
M30X1.5 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-30-12 |
M30X2 |
20 |
12 |
80.9 |
6 |
33.5 |
36 |
|
20141-36-14T |
M36X2 |
22 |
14 |
83 |
7 |
32.64 |
41 |
|
20141-39-16T |
M39X2 |
25 |
16 |
88.2 |
7 |
33.95 |
46 |
|
20141-45-20T |
M45X2 |
32 |
20 |
99.1 |
8.5 |
38.4 |
55 |
|
20141-52-24T |
M52X2 |
40 |
24 |
114.1 |
9 |
43.4 |
60 |
Paramɛtiriw/Tekniki kunnafoniw .
|
Yɛrɛyɛrɛ |
Zhejiang, Sinuwa jamana na . |
Laseli don . |
Negotiable . |
|
Seereyaw . |
GB/T19001-2016 IDT ISO9001:2015 |
Packing . |
Export Standard . |
|
Minɛ |
Karɔbɔni nɛgɛ . |
garanti . |
1 san . |
|
Sarali waati . |
TT . |
MOQ . |
2000 |
|
Cogo |
Kura |
Ɲɛ |
Zɛnki finman, zinki kulɛri . |
Kompani ko la .
Nafaw .
Mun na baarakɛlaw b’an ka fitininw ɲɛfɔ:
40% baarakɛ waati jan ka tɛmɛ izini hakɛ kan .
72 lɛrɛ kɔrɔtɔko baarakɛyɔrɔ .
Aplikasiɔn injiniyɛri minnu bilalen bɛ u yɛrɛ kan, olu minnu dira jatebɔsɛbɛnba bɛɛ ma .
REAL-Waati jatebɔsɛbɛn yecogo ka tɛmɛ kiliyanw ka dakun fɛ .
FAQ .
J: Cɛ jibolisiraw bɛ kɛ cogo di?
A: Cɛ jibolisira fitinin ye ɲɔgɔndan sugu dɔ ye min dilannen don walasa ka jibolisiraw siri yɔrɔw la (misali la, pɔnpew, valvew, silindaw). A bɛ kɛnɛma jiriw jira minnu bɛ siri ka kɛ muso ye min bɛ bɛn o ma-Tire port walima adapter.
J: Cɛw ka jibolisira suguya minnu ka teli ka kɛ, olu ye jumɛnw ye?
A: suguya minnu bɛ fɔ kosɛbɛ, olu ye:
JIC (Joint Industry Council): sigiyɔrɔ 37-degree flared.
NPT (National Pipe Tapered): Fila minnu bɛ kɛ ka u datugu.
BSP (British Standard Pipe): Fila minnu bɛ kɛ ɲɔgɔn fɛ walima minnu bɛ kɛ ni u ye (BSPP/BSPT).
ORFS (O-Sɛbɛn ɲɛda sigilan): ɲɛda fla ni O-ring ye ka ɲɛsin bɔgɔ ma-Proof connections.
Metric: Filaw bɛ ISO/ DIN sariyaw labato.
J: Ne bɛ se ka cɛ hydraulique fitinin ɲuman sugandi cogo di?
A: Aw ye jateminɛ kɛ:
Fila suguya/hakɛ (misali la, 1/2" npt, JIC #8).
Tansiyɔn hakɛ (a bɛ bɛn sitɛmu wajibiyalenw ma).
Material (Steel, Inox, Brass).
Bɛn ni hosew ni minɛnw ye.
J: Ne bɛ se ka bɔgɔw bali cogo di cɛw ka jibolisiraw la?
A: Aw bɛ a lajɛ ni jiriw saniyalen don ani ni u ma tiɲɛ.
Aw bɛ baara kɛ ni jiri sirilan ye (NPT kama) walima O{0}}rings (OFS kama).
Aw bɛ a siri ni girinya ye min bɛ fɔ-Aw yɛrɛ tanga over-Tightening ma.
J: Yala ne bɛ se ka jiri suguya wɛrɛw ɲagami (misali la, NPT ni BSP)?
A: Ayi, ɲagamilanw bɛ se ka kɛ sababu ye ka bɔgɔ bɔ walima ka tiɲɛni kɛ. Aw bɛ baara kɛ ni adaptɛriw ye ni sariyaw tɛ kelen ye.
J: Danfara jumɛn bɛ NPT ni NPTF jiriw cɛ?
A: NPT (National Pipe Tapered): A bɛ sigilan de wajibiya.
NPTF (Dryseal): A dabɔra ka sigi ni sigilan tɛ a la nka a ka teli ka kɛ ni a ye walasa a ka lakana.
J: Ne bɛ se ka cɛ dɔ ka jiriturulan ka juru hakɛ suman cogo di?
A: Aw bɛ baara kɛ ni kalifa ye walasa ka jiriw kɛnɛma cɛmancɛ (OD) suman ani ka jiribulu dɔ lajɛ. KƆLƆSI JAABI (Tɔ̀gɔw bɛ Kɛ insitiri kelen na imperial, mm kama mɛtɛrɛ kama).
J: Cɛw ka jibolisiraw bɛ dilan ni fɛn jumɛnw ye?
A: Karɔbɔni nɛgɛ: musaka-Fɛn barikama, fanga ka bon.
inox: corrosion- bɛ se ka kɛ.
Brass: A bɛ kɛ ka dɔgɔya-Dɔgɔya sigidaw la, minnu bɛ fɛnw sɔgɔ.
J: Cɛ fitininw ka degun hakɛ min bɛ se ka kɛ, o ye mun ye?
A: A bɛ danfara ka kɛɲɛ ni suguya/fɛn ye (misali la, JIC fɛnw bɛ se ka 5,000+ PSI minɛ). Aw ye a dilannikɛlaw ka sariyaw lajɛ.
J: Ne bɛ se ka segin ka baara kɛ ni cɛ hydraulique fitininw ye wa?
A: Ɔwɔ, ni a ma tiɲɛ. Aw bɛ jiriw ni sigilanw lajɛ ni u sɛgɛnnen don/ka kɛ u la sani u ka baara kɛ kokura.
J: Mun na ne ka cɛ fitinin bɛ to ka lajɔ?
A: Vibration: Aw bɛ baara kɛ ni dasirilan ye walima ni jiri ye-Fluide de lock.
Torque min tɛ tiɲɛ ye: Aw bɛ tugu a dilannikɛlaw ka specs kɔ.
Thread wear: Aw bɛ a falen ni a bɔra a la.
J: Ne bɛ se ka san hakɛ caman san-Colity Male Hydraulique Fittings?
A: Sanni kɛ ni hydraulique dilanbagaw ye walima fɛn dilannikɛlaw ye. Aw bɛ a lajɛ ni sariyaw labatoli ye (SAE, ISO, DIN).
